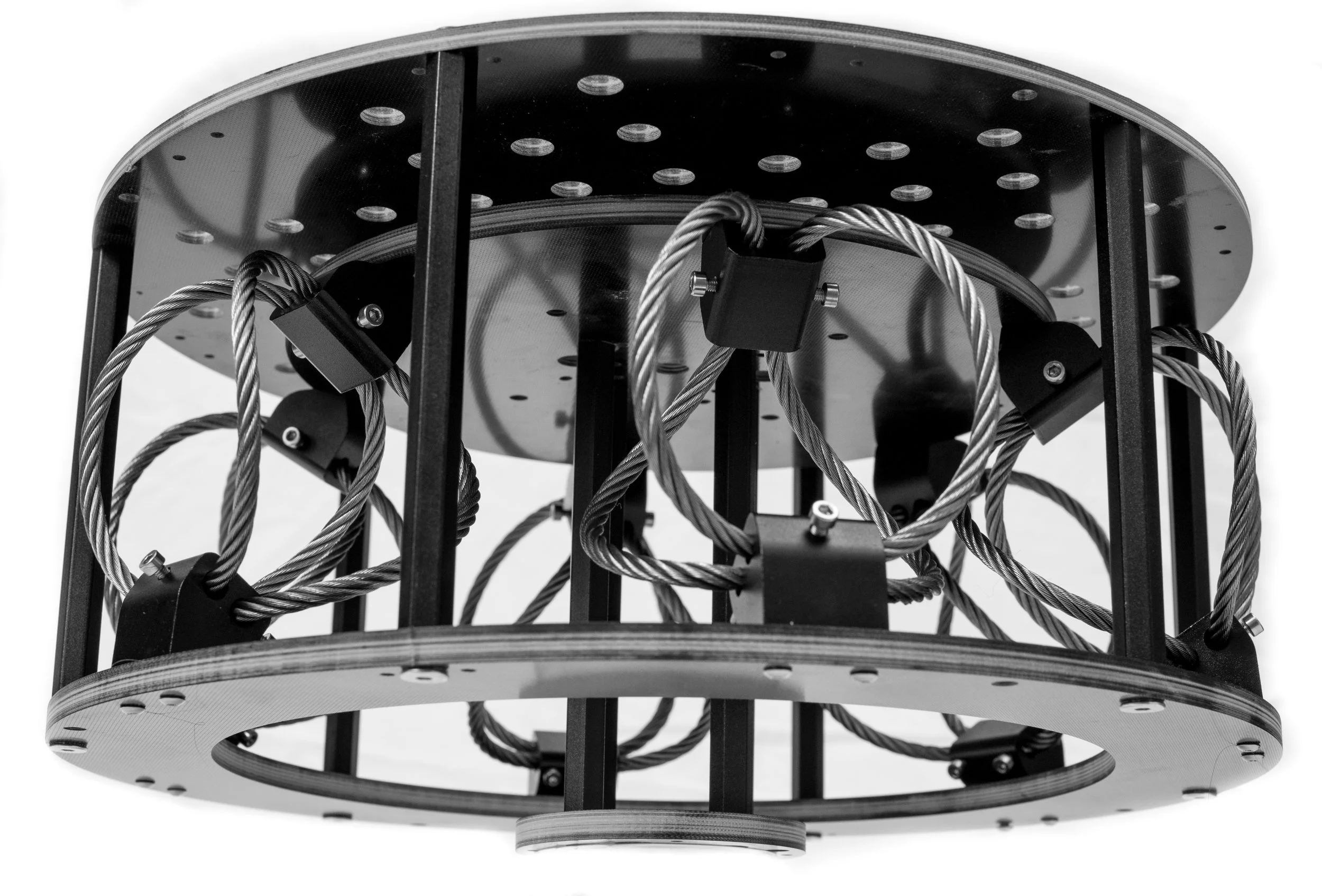

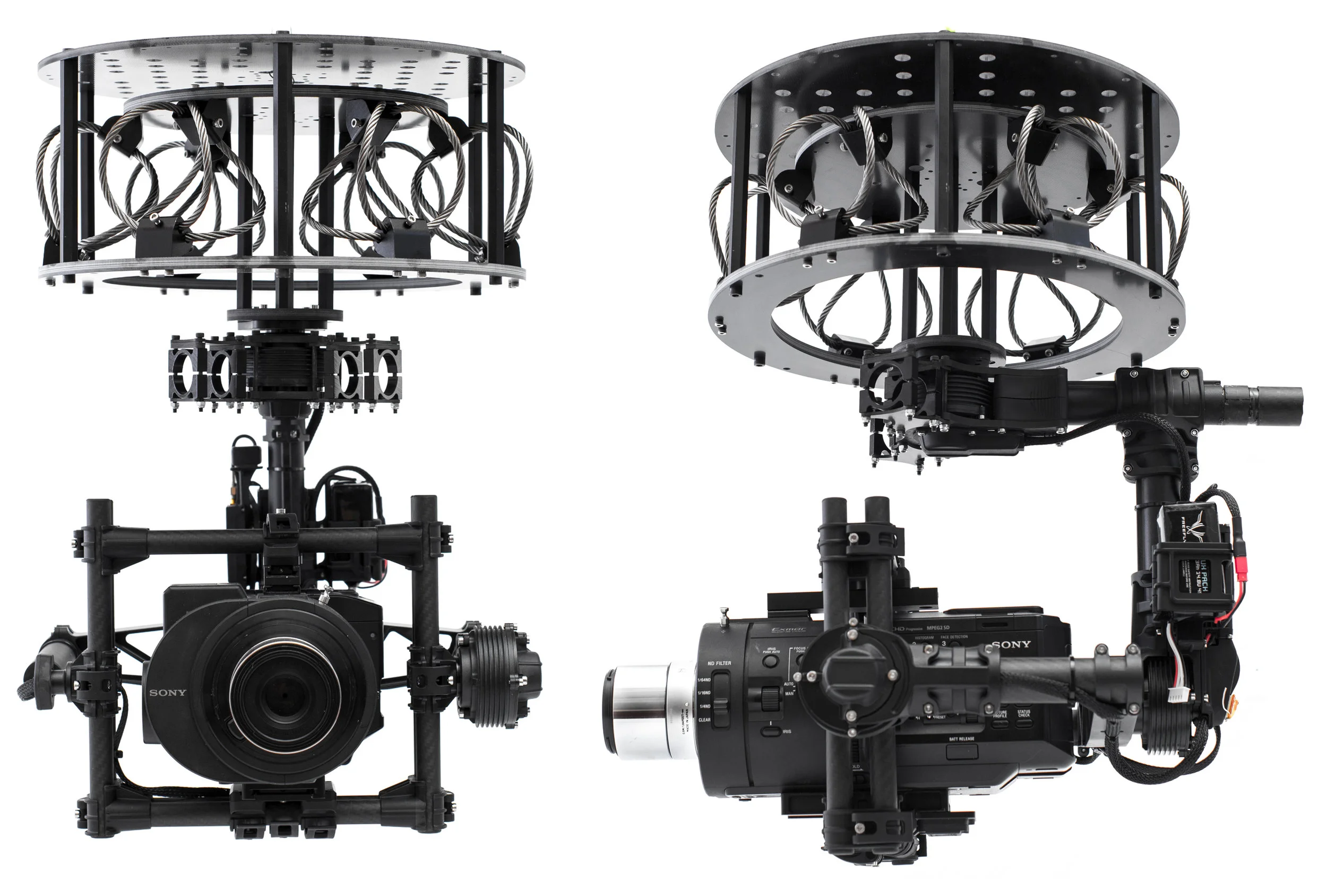

The CVI-Underslung allows for the gimbal to be mounted on the bottom of the isolator. This is beneficial for use on bumpy roads or tight turns because the gimbal is inherently more stable while in the underslung position. It's also great for use on cranes, jibs, or suspension arms.

The CVI-U can also be converted into a standard CVI (for upright use with payloads under 11Lbs/5kg) by simply removing the standoffs and swapping out the lower ring plate with the upper mounting plate.

  • Max Payload Weight: 17 lbs (7.7kg)
  • Min Payload Weight: 4 lbs (1.8kg)
  • Wire Rope Modules can be added/removed to adjust payload capacity
  • Weight: 1.6kg
  • Base Diameter: 305mm
  • Height: 130mm

CVI-U Options

CVI-U Quick MounT

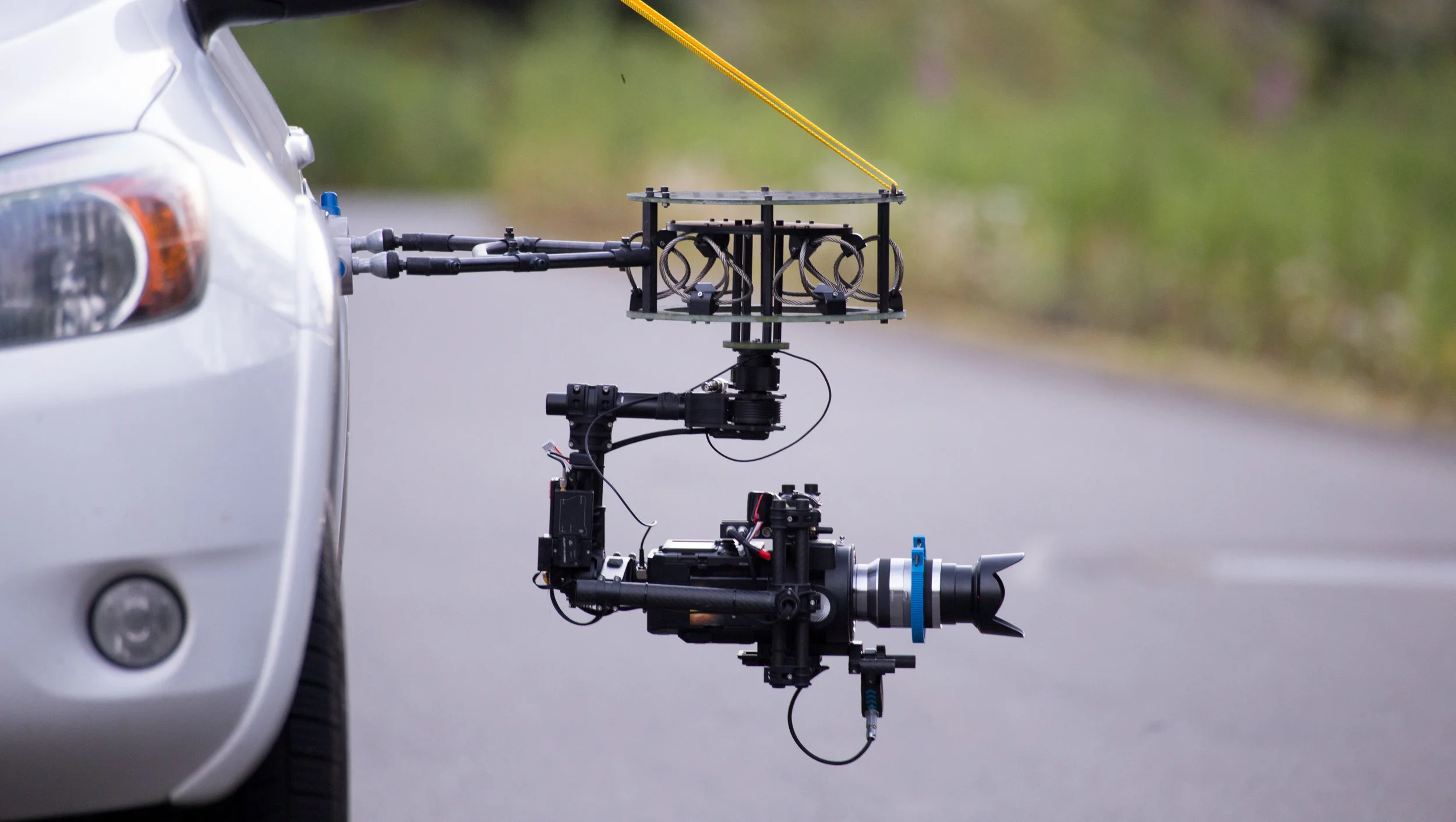

The Quick Mount makes it easy to turn any vehicle into a chase car within minutes. It uses two vacuum cups and a nylon strap to secure the isolator in place. Simply stick the vacuum cups on any door, hatch, side panel or tail gate, and attach the nylon strap to the roof rack or any secure fixture.

The system also offers 150mm of Z-axis (up and down) damping for additional smoothness. This is achieved with silicone gel links or bungee in series with the nylon straps.

  • Vacuum Cups: Thumb pump vacuum - 25kg hold strength each
  • Not for use on roads with potholes or large bumps
